GBLC12CI双向，低电容ESD静电保护管DLLC12CI

Bi，PD=350W，VRWM=12V，VBR=13.3V，VC=28.6V，IPP=12A，IR=1uA，CJ=0.8PF

FEATURES

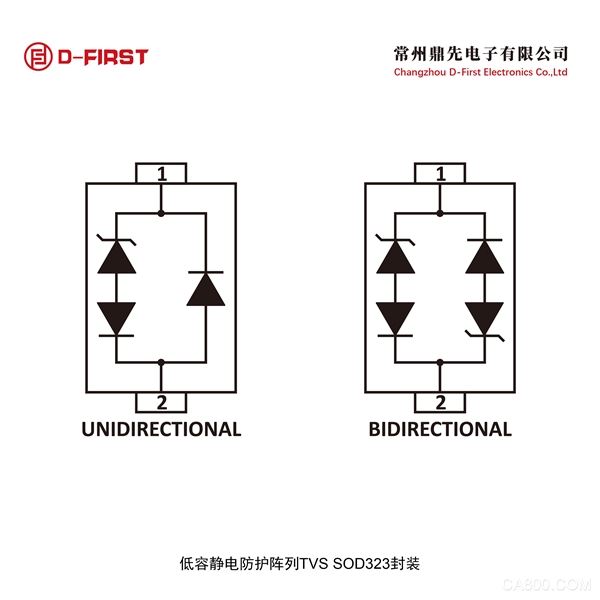

350 Watts Peak Pulse Power per Line (tp=8/20us) Unidirectional & Bidirectional Configurations

Replacement for MLV (0805)  Protects One Power or I/O Port ESD Protection > 30 kilovolts ?

Low Clamping Voltage  Available in Multiple Voltage Types Ranging From 3V to 24V

Ultra Low Capacitance: 0.8pF Typical

RoHS Compliant

APPLICATIONS

 Ethernet - 10/100/1000 Base T

 Cellular Phones Handheld - Wireless Systems

 Personal Digital Assistant (PDA)

 USB Interface

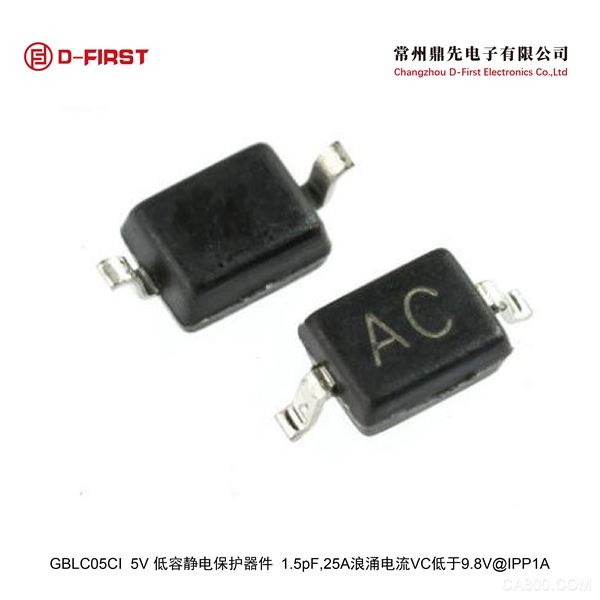

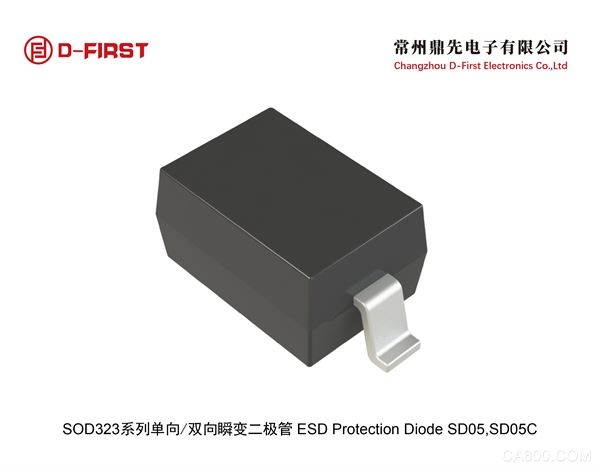

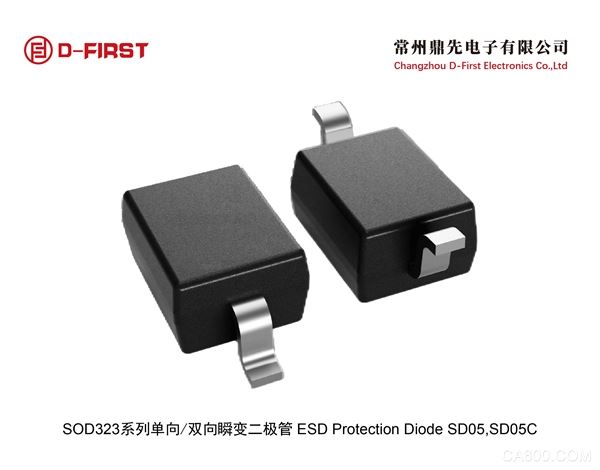

封装:SOD-323包装：3K盘

鼎先电子 ESD TVS工厂

提供测试样品，有安全库存储备，可代工。

GBLC05I  GBLC05CI

GBLC08I  GBLC08CI

GBLC12I  GBLC12CI

GBLC15I  GBLC15CI

GBLC18I  GBLC18CI

GBLC24I  GBLC24CI

GBLC03 GBLC03C GBLC05 GBLC05C

GBLC08 GBLC08C GBLC12GBLC12C

GBLC15 GBLC15C GBLC18 GBLC18C

GBLC24 GBLC24C
